Product Detail
Model No.:
SC80-C
Brand Name:
v-checker
Means of Transport:
Air
blak:
0.5kg
The V-checker V302 code reader is specially designed to provide diagnosis service for all electronic system of VAG family cars including Audi/Volkswag

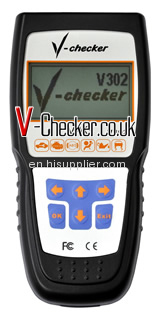

V-Checker VChecker V302 VAG Professional CANBUS Code Reader Czech Version
Car model:
Audi, Volkswagen, Skoda and Seat.
Applicable for nearly 100 systems: engine system, transmission system, ABS, Brake systems, air bag systems, air conditioning systems, burglar alarms, ultrasonic monitoring system, clutch control, suspension systems, directional control, steering wheel assistance, central locking control, shock absorption system, the dashboard system, auxiliary heating, distance control, Gateway data bus , electric window system, light control left and right light control, navigation system, internal testing, the central module, automatic light switches, electric drive, battery control, emergency call module, parking assist, electronic control unit, four-wheel drive, anti-skid control , the driver's seat adjustment, diesel pump system, headlight control, radio, tire pressure control, seat / Mirrors, battery charging, electric wipers, electric drivers door , electronic co-driver door, left rear door electronic control, electronically controlled right-rear, brake booster, brake assist booster, rear spoiler, access and start control, the front passenger seat adjuster, display control unit , the rear display control unit, TV tuner, voice control, car phone, electric sunroof, rear driver side seat adjustment.
Support protocols:
• ISO15765-4 (CAN BUS)
• ISO14230-4 (KWP2000)
• ISO9141-2
• J1850 VPW
• J1850 PWM protocols.
Language:
Czech
Feature:
• Retrieves ECU information, reads DTCs, displays live data stream, clears DTCs, basic system adjustment,
channel adjustment, reads independent channel data, test actuator, programs control unit, system log
and sends chassis number.
• Special function: Reset oil lamp, IN1 and IN2.
• Help information: Clear the value of self-learning, adaptation of ECU and throttle, adaptation of waste gas
recirculation's value, basic settings of automatic transmission , reset maintenance lamp, remove or
program remote car key, dashboard, reset steering angle sensor, fuel level sensor adaptation, air bag lift / activation,
dashboard language, basic settings for air conditioner / heating system, program new airbag control module.
Specification:
• Working voltage: 8-20V
• Working current: 70mA
• Working power: 0.9W
Package including:
• 1×V-Checker V302 VAG PRO CAN Bus Code Reader
• 1×OBD2 Cable
• 1×User manual
• 1×Carry bag
V-checker v301 is a multilingual car reset tool. There are many other language versions that have not been listed on on the website, namely Portugal, Polish, German, Finnish, Hungary. If you need other languaged, just leave us a message, we can send the order as your request,
